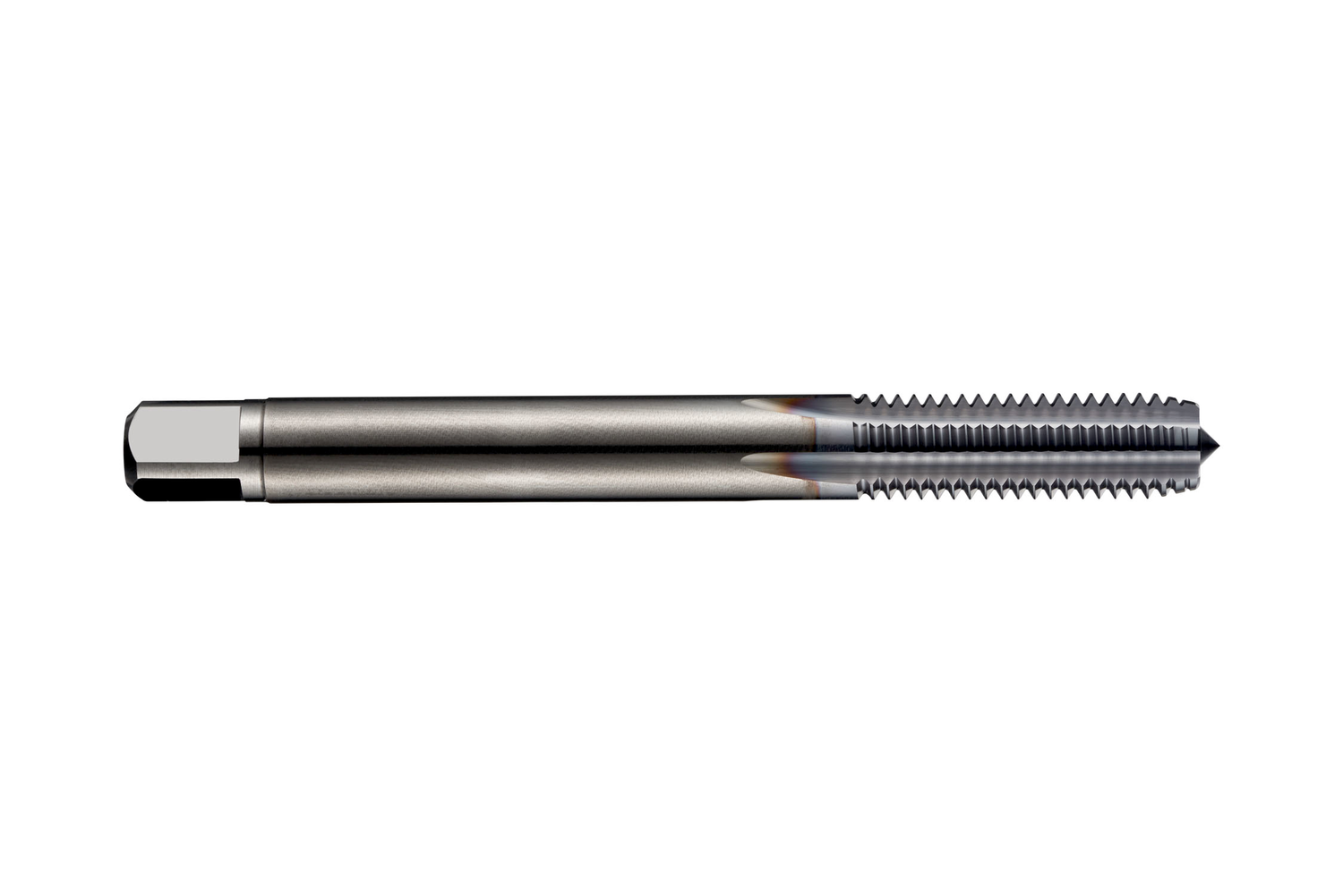

M Machine Tap Straight Flute
Ordering number: 7182378

Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in hardened steel >55HRC

info If you want to see the prices or stock information, please sign in or request access.
Sign in to add to wish list
Product Feature

Titanium Carbonitride Coating

Thread Form, Metric Coarse

DIN 371 – Thread Form Standard

DIN Thread Pitch Diameter Tolerance Zone (with increased pitch diameter)

Through or Blind Hole Application

2×D Usable Tool Depth to Diameter Ratio

Hard Material (Solid Carbide)

Semi-Bottoming Tap Chamfer (2 – 3 Pitch Lead)

Straight Flute Geometry

Right Hand Rotation / Cutting

Product Detail
EAN number7320760706510
Thread diameter size (TDZ)4
Product number (SAP)86031175
Ordering code ANSIT210M4
Threading length - millimeter (THL)11 mm
Gross weight - grams17.9
Thread pitch - millimeter (TP)0.7 mm
Connection diameter - millimeter (DCON MS)4.5 mm
Overall length - millimeter (OAL)63 mm
Flute count (NOF)5
Clamping width - millimeter (WSC)3.4 mm
Clamping Length - millimeter (LSC)6 mm
Premachined hole diameter - millimeter (PHD)3.4 mm
Cutting Conditions
